Home Product Imported Brands ibidi μ-Slide y-shaped

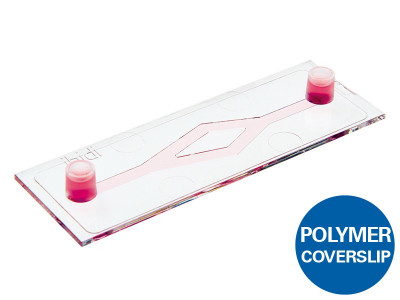

μ-Slide y-shaped

Model:80126

Brand:ibidi

Specifications :

Introduction:A flow through μ-Slide for bifurcation studies and blood vessel simulation

*Rolling and adhesion of leukocytes on endothelial cells cultured under flow

*Simulation of the bifurcation of blood vessels for arteriosclerosis research

*Cell-cell interaction studies and cell-drug interaction screenings under flow conditions

Specifications

Outer dimensions (w x l)

25.5 x 75.5 mm2

Adapters

Female Luer

Volume per reservoir

60 μl

Volume of the channel

110 μl

Height of the channel

0.4 mm

Width of the channel

3 mm

Branching angles

30° and 45°

Growth area

2.8 cm2

Coating area using 110 μl

5.6 cm2

Bottom: ibidi Polymer Coverslip

Select the ideal Perfusion Set for your flow application here.

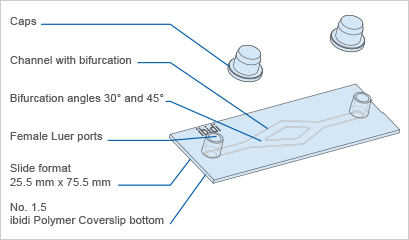

Technical Features

30° and 45° angles to simulate the bifurcation of blood vessels

Easy connection to tubes and pumps

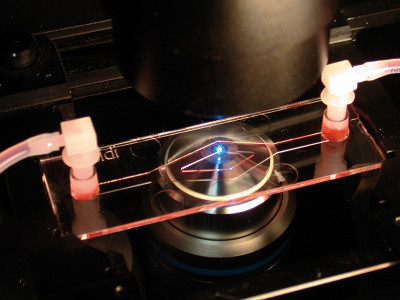

Fully compatible with high resolution microscopy and immunofluorescence staining

Defined shear stress and shear rate levels

The flow is always laminar, i.e., turbulent flows* are not possible

* For simulation of turbulences we recommend oscillating the flow using the ibidi Pump System.

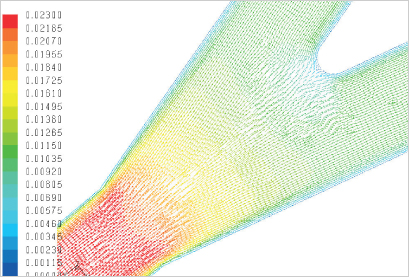

Non-Uniform, Laminar Shear Stress

Use Application Note 18 to calculate the shear stress in a μ-Slide y-shaped.

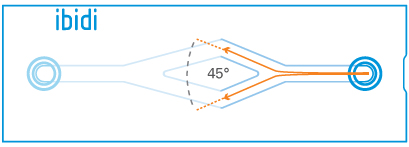

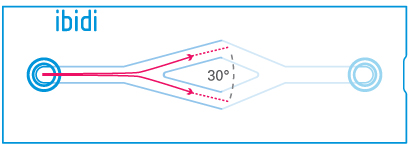

Two Flow Directions Possible
