Home Product Imported Brands ibidi μ-Dish 35 mm, high Grid-50 Glass Bottom

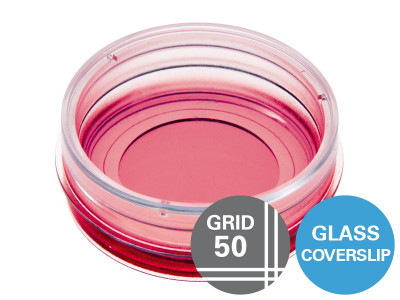

μ-Dish 35 mm, high Grid-50 Glass Bottom

Model:81148

Brand:ibidi

Specifications :30 (individually packed)

Introduction:A 35 mm imaging dish with a glass bottom and an imprinted 50 μm cell location grid Ideal for locating cells or cell clusters Easy cell counting per defined area Glass coverslip for TIRF and single molecule applications

Applications

Locating cells or cell clusters, e.g., transfected cells for clone picking

Counting events per defined area (e.g., when calculating transfection efficiency)

Providing a reference structure for cell movements

Treatment of distinct single cells, such as in microinjection

Specifications

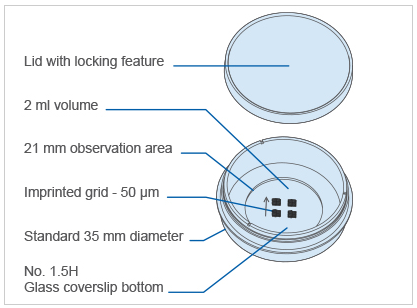

Geometry of the μ–Dish 35 mm, high Glass Bottom

Diameter dish35 mm
Volume2 ml
Growth area3.5 cm2
Coating area using 400 μl4.1 cm2
Diameter observation area21 mm
Height with / without lid14 mm / 12 mm
Bottom: Glass coverslip No. 1.5H, selected quality, 170 μm +/- 5 μm

Geometry of the Grid-50

Number of squares4 x 400
Repeat distance50 μm (+/- 1 %)
Groove width5 μm (± 1 μm)
Groove depth< 5 μm


Technical Features:

Grid with 50 μm μm repeat distance

Lettered and numbered 4 x 400 squares (A-U; 1-20)

Grid and cells in one focal plane

Bottom made from D 263 M Schott glass with a thickness of 170 μm +/- 5 μm

Lid with lock position, which minimizes evaporation

May require coating to promote cell attachment

Also available in a Grid-500 version with ibidi Polymer Coverslip Dish 35 mm, high Grid-500 or μ-Slide 8 Well Grid-500

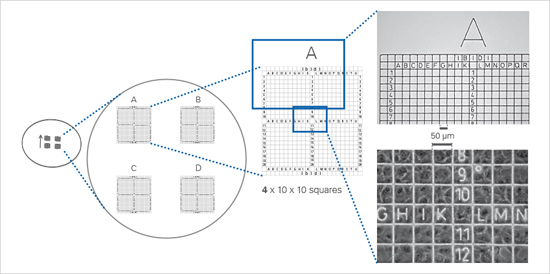

Layout Grid-50

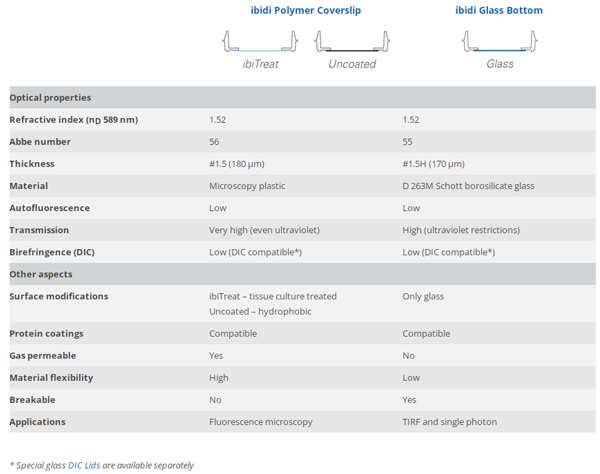

ibidi Polymer Coverslip vs. ibidi Glass Bottom
