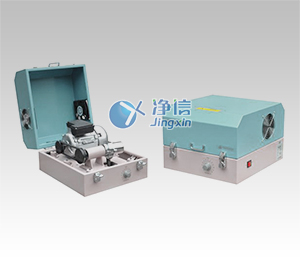

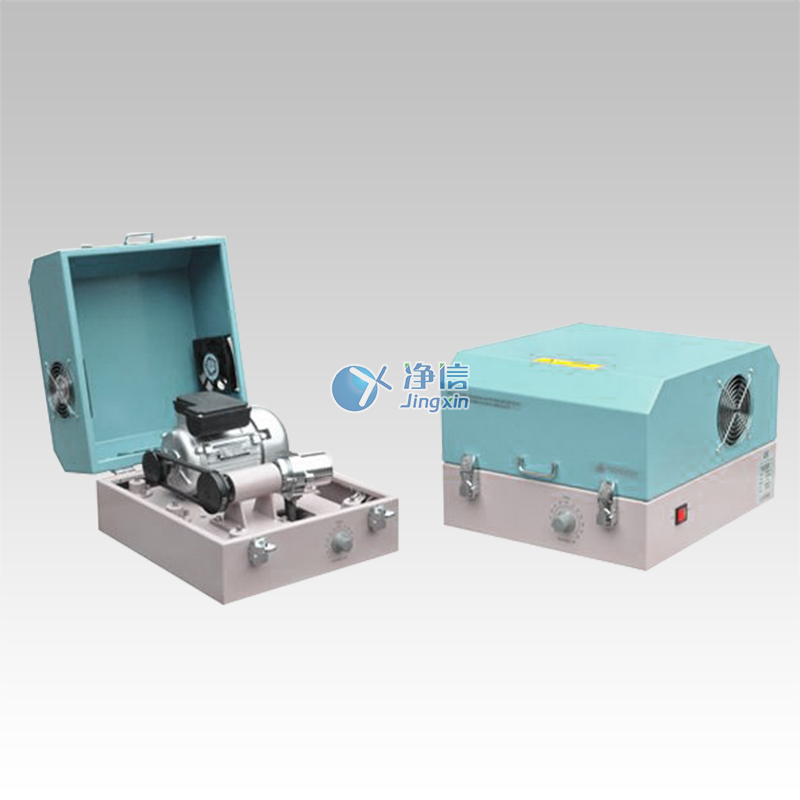

Three-dimensional high-speed vibration ball mill

Model:JXGS-1A

Brand:Shanghai Jingxin

Specifications :Set

Introduction:Product introduction: The high-speed vibrating ball mill has an eccentric pendulum shaft. When the motor is running at high speed, the tank body will swing eccentrically;

Product Description:

The high-speed vibrating ball mill is a high-efficiency small instrument used for the preparation of laboratory samples (small and small amounts). The instrument has three-dimensional rotation and vibration during grinding, and the collision energy is higher than other types of ball mills. The instrument is small in size, light in weight, high in efficiency and low in price. It can be used for grinding, mixing and mechanical alloying of materials. The high-speed vibrating ball mill can use dry and wet methods to ball mill or mix various solids, suspensions and pastes with different particle sizes and materials.

The high-speed vibrating ball mill has an eccentric pendulum shaft. When the motor is running at high speed, the tank body will swing eccentrically; it drives the entire support to vibrate up and down, so that the grinding process is completed in a three-dimensional space with high-speed swing and vibration. Greatly improve the speed and efficiency of grindi


technical parameter:

Main parameters

Parameter range

Specification:

50ml,80ml

Large loading capacity per tank:

1/3 of the volume of the ball mill tank

Feed size:

<1mm

Discharge particle size:

as small as 0.1μm

Vibration frequency:

1200 cycles/min

Timing range:

0~9999 seconds and normally open file

Motor specifications:

single-phase 220V 180W

Current input:

single-phase 220V 50Hz

Weight:

about 15KG

Optional ball mill tank:

stainless steel tank, agate tank, nylon tank, PTFE tank, ceramic tank, zirconia tank, stainless steel vacuum tank

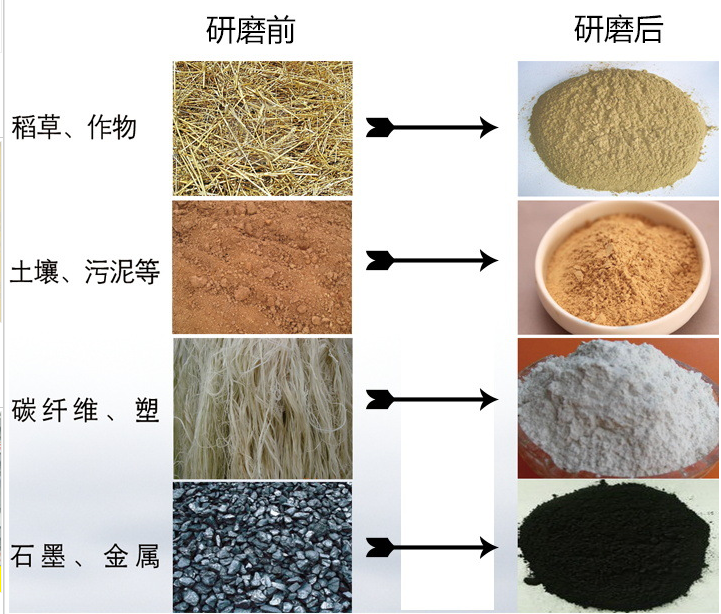

Experimental case

1. Description:

(1) Application field: environment;

(2) Materials/raw materials: soil, pebbles;

(3) The particle size of the feed material: 1mm;

(4) Feeding amount: 500g;

(5) Material properties: brittle;

(6) Customer requirements: 50μm;

(7) Post-sequence analysis: particle size analysis.

2. Scheme:

(1) Equipment (instrument) selection: JXGS-1A, soil grinder;

(2) Jar and ball configuration: agate jar with agate ball;

(3) Operating parameters: 500 revolutions per minute of autorotation, alternating forward and reverse rotation after 30 minutes;

(4) Grinding time: 1 hour;

(5) Results (recommendation): JXGS-1A can be used to grind the soil;

(6) Grinding result: 100%<50μm.
